TKUN XC9016 CPU3855U 4GRAM 128G SSD
TKUN XC9016 Industrial control computer
Product model: TKUN-XC9016
Brand: TKUN(Tiankun) Tiankun Industrial Control
CPU: lntel ® Celeron ® 3855 u
Memory: DDR4 4G
Hard disk: SSD 128G
· Adopt -Intel ® Skylake-U series
·1 2.5-inch SSD installation bit for standard hard disk
·10 GPIO general input/output ports,2*COM(TTL serial port),OFF/ON
·SO-DIMM DDR4 memory *1, up to 32G

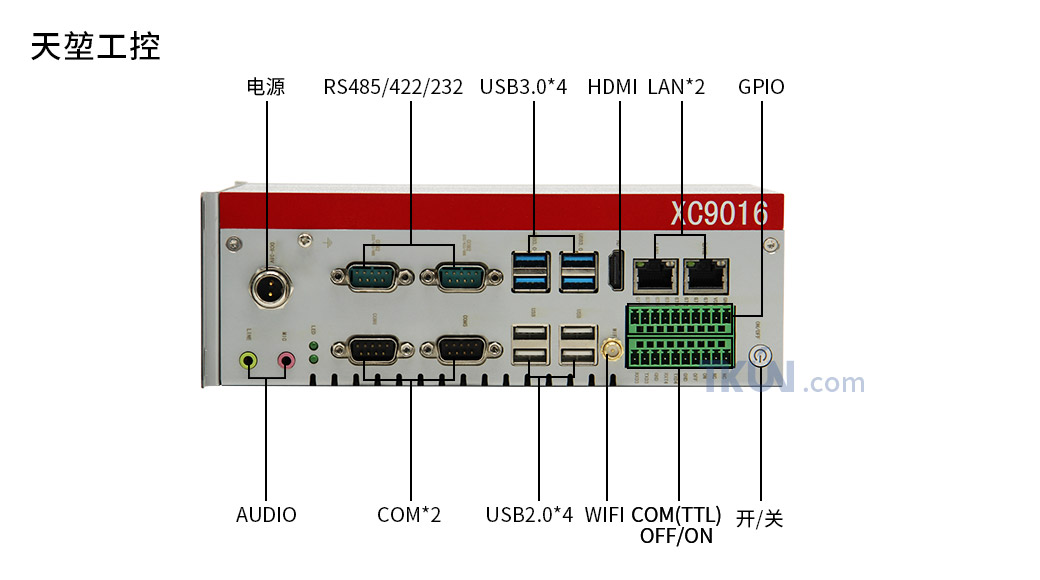

·LAN*2,HDMI*1,USB3.0*4,USB*4,COM*4,WIFI(optional), sound
Frequency *2, indicator light *2, power interface *1,2.5"SSD mounting bit *1
·COM1,2(switchable RS232/485/422 serial port)
· Aviation power interface,9V~36V wide voltage input
|
Type:
|
XC9016
|
CPU
|
lntel®Celeron®3855U
|
chip
|
Intel® Skylake SOC
|
RAM
|
DDR4 4G
|
DISK
|
64G SSD
|
display
|
intel® HD Graphics 510
|
net
|
WIFl/4G
|
|
Intel® GbE LAN chips(10/100/1000 Mbit)
|
IO
|
LAN*2,HDMI*1,USB3.0*4,USB*4,com1,com2支持RS232/422/485BIO switch,com5,com6(RS232),WIFI*1,
|
AUDIO*1,The power supply(9~36VIN),
|
terminal
|
com3,com4(TTL),GPIO*10 BIOS Switch to use,2PIN POWER。
|
Additional features
|
Diskless start, power on the boot, network wake up, watchdog
|
The power input
|
DC9V~36V
|
Appearance of size
|
147*216MM
|
The material
|
Aluminum alloy metal
|
The environment
|
Operating temperature :-20°C~60°C
|
temperature
|
Storage temperature: -40°C~80°C
|
humidity
|
10%~90% , 40°C (No condensation)
|
AUDIO
|
Realtek ALC662 HD Audio IC
|
system
|
Windows 7 Windows8 windows10 LINUX ubuntu
|
|
