Display Pane

Brand

TKUN

Size/Proportion

12.1 inch 4:3

Model

V121XGA        V121XGA-A

Brightness

450cd/㎡        1000cd/㎡

Resolution

1024*768

Contrast

1000:1

Display color

16.7M

Response time

2-5ms

Visible angle

85/85/85/85

Pixel pitch(mm)

0.240(H)X 0.240(V)

Touch screen

Touch type

5-wire Resistive touch

Touch screen hardness

3H

Positioning accuracy

less than 2MM

Ct.Life

≥50 million times

Touch media

Resistive stylus, finger

Right click functionality

click on a point, long and hold more than 3 seconds

Touch interface

USB(optional COM)

Support system

win7, win8, win10, android, linux and so on

Motherboard

Function

Refresh frequency

60Hz

Power input

DC12-36V

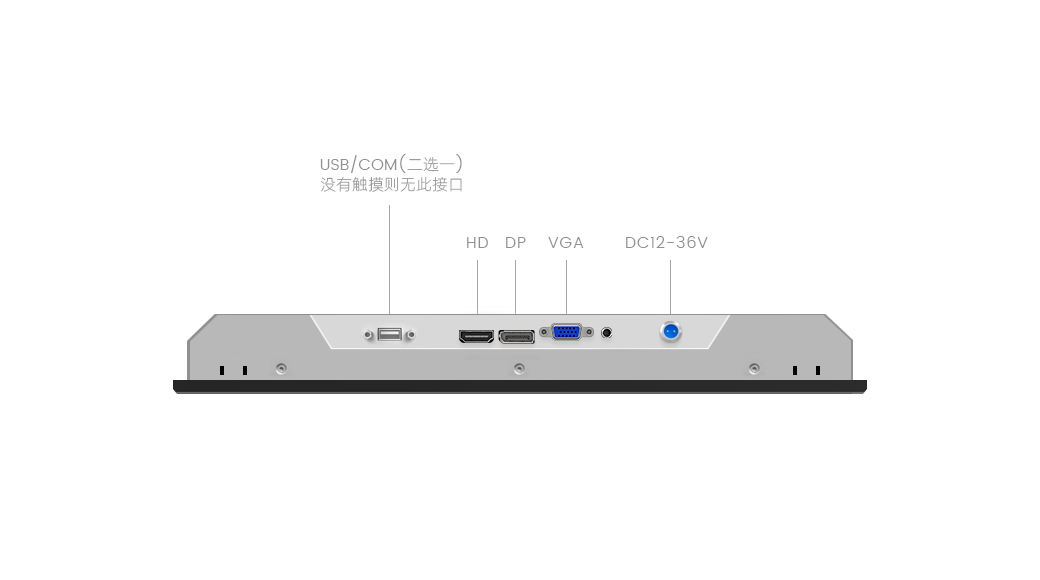

Functional interface

HD，DP，VGA，Audio

Environmental parameters

Operating temperature/humidity

-10℃ to +60℃/ 0-80% relative humidity, no condensation

Storage temperature/humidity

-15℃ to +65℃/ 0-90% relative humidity, no condensation

Product Service

After service

one-year warranty and lifelong maintenance

Customized service

OEM/ODM is available for material, appearance, dimensions,

wide temperature, outdoor highlight, wide voltage, etc.
